Mantova Post Style Shelving with ABS Real Tuff removable shelves has been making life easier for thousands of Australian businesses for more then a decade. Removable shelves are easy to clean and dishwasher proof. Cleaning your cool room one shelf at a time, without having to dismantle the whole bay of shelves is a huge time and cost saver. Real Tuff Shelves are HACCP APPROVED and have LIFE Antimicrobial Protection built in during the manufacturing process.
Product Specifications
| Shelf Lengths (mm) |
600 750 900 1050 1200 1350 1500 1650 1800 |
| Shelf Widths (mm) |
300 450 525 600 |
| Standard Post Heights |
3 Tiers: 1200mm high |
| 4 Tiers: 1800mm high |
| 5 Tiers: 2000mm high |
| Shelves |
Frames are Stainless Steel or Galvanised 30mm Square Tube fitted with moulded Real Tuff Shelves |
| Posts |
Posts are manufactured from 25 x 22 x 1.2mm tube fitted with a Mantova Bullet Foot allowing 32mm of adjustment |
| Finishes |
"ALLGAL" Galvanised inside and out |
| Polished Stainless Steel |
| Weight Loading |
Real Tuff Shelves are rated to 250kg evenly spaced per tier. Shelf clips for add on or corner units are rated to 150kg. |
| Warranty |
All components come with a 12 month Structural Warranty against manufacturing defects. |
|

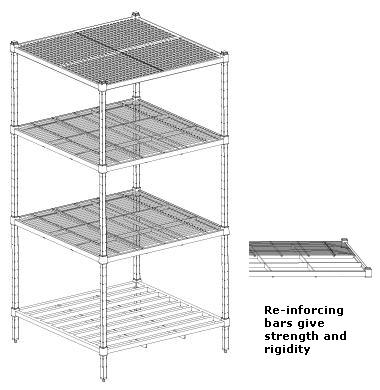

HEAVY DUTY WIDELINE SHELVING
PROVIDES:
Depths of 750 and 900 mm
Lengths of 600 - 750 - 900 - 1050 - 1200 - 1350 and 1500 mm
SHELVES
Are available in Wire Grid -
Moulded ABS and Dunnage style tube
POSTS:
Are manufactured from 25 mm
x 25 mm x 1.2 mm tube fitted with a
Mantova bullet foot allowing 32 mm
of adjustment. Standard post heights
are 1200 mm, 1800 mm or 2000 mm high.
FINISH:
Zinc Lacquered, Hot Dip
Galvanised, Stainless Steel or Powder Coat
|
 |
|

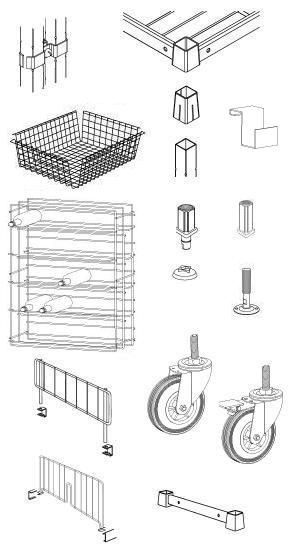

POST STYLE ACCESSORIES
- Bridge/Corner Clips allow uninterrupted access where corner or bridge assemblies are required.
- Post Clamps allow adjoining assemblies to be locked together.
- Tray Slides can be fitted between two wire grid shelves.
- Shelf Dividers available for wire grid shelves.
- Product Stops of up to 3 sides available for ABS shelves.
- Wire Back/Side Ledges attach to wire grid shelves with clips to provide product stops.
- Side/Rear Panels of wire grid mesh are available.
- No.10 Can Modules will fit 450 mm deep frames to accomodate up to 6 cans each.
- Castors may be fitted to the bottom of posts in place of feet. Also rubber buffers are available.
- Post Joiners will allow extension of post height on existing installations.
- Vegetable Baskets made from zinc lacquered wire mesh drop in to frames.
- Wine Modules either bulk or individual modules can be housed in 300 mm or 450 mm shelf asseblies.
- Drop On/Drop In Shelves of solid S/S or Gal can be used in place of ABS shelves on frames. May require additional braces for support.
- Disc Feet may be used instead of standard bullet feet by using threaded inserts in posts.
- Foot Pad may be used on standard bullet Foot.
|
 |
