Namco - Dimension Filing Cabinet

logo namco

Quality features at an attractive price

Australia's most popular filing cabinet now features a smooth, full extension ball bearing runner system which allows complete drawer access and prevents jamming even under full load.

Dimension's high-sided zincseal drawers can easily support your filing needs and runner buffers prevent drawers drifting open when closed for additional safety.

The space efficient slimline cabinet design includes a welded internal cabinet frame with support channels under each drawer for added stability.
An extensive range of fashionable powder coat colours is available as standard for integration into any office environment.

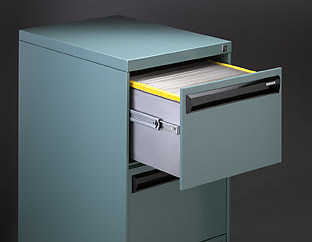

n dimopen 1210701757



External Dimensions:
1 Drawer: 411mmH x 453mmW x 620mmD
2 Drawer: (under desk unit)
670mmH x 453mmW x 620mmD
2 Drawer 715mmH x 453mmW x 620mmD
3 Drawer: 1021mmH x 453mmW x 620mmD
4 Drawer: 1327mmH x 453mmW x 620mmD
Internal Drawer Dimensions: 270mmH x 392mmW x 580mmD
Storage Capacity:
1 Drawer: 0.58 lineal metres
2 Drawer: 1.16 lineal metres
3 Drawer: 1.74 lineal metres
4 Drawer: 2.32 lineal metres
30kg suspended load per drawer
Shipping Weight: (kilograms)
2 Drawer: 28kg
3 Drawer: 40kg
4 Drawer: 52kg
Shipping Volume (metres)
2 Drawer: 0.21
3 Drawer: 0.29
4 Drawer: 0.38
Standard Features: Fully welded top
Internally assembled carcass construction
Slimline carcass design
Zinc base plate
Compact lock
Full-width PVC handle
Welded internal cabinet frame
Full height zinc seal drawer body
Optional drawer file divider rack
Full extension ball bearing runner system
Runners tested to 50,000 cycles with a 30kg load
670mm high 2 drawer unit for under-desk storage
Finish: Powder coat (45-50 microns thickness)
12 standard colours (COLOURS)
Non-standard colours subject to minimum quantities
Warranty: 5 years
