LOGIX® Cantilever Racking
Adaptable, strong and practical solution.

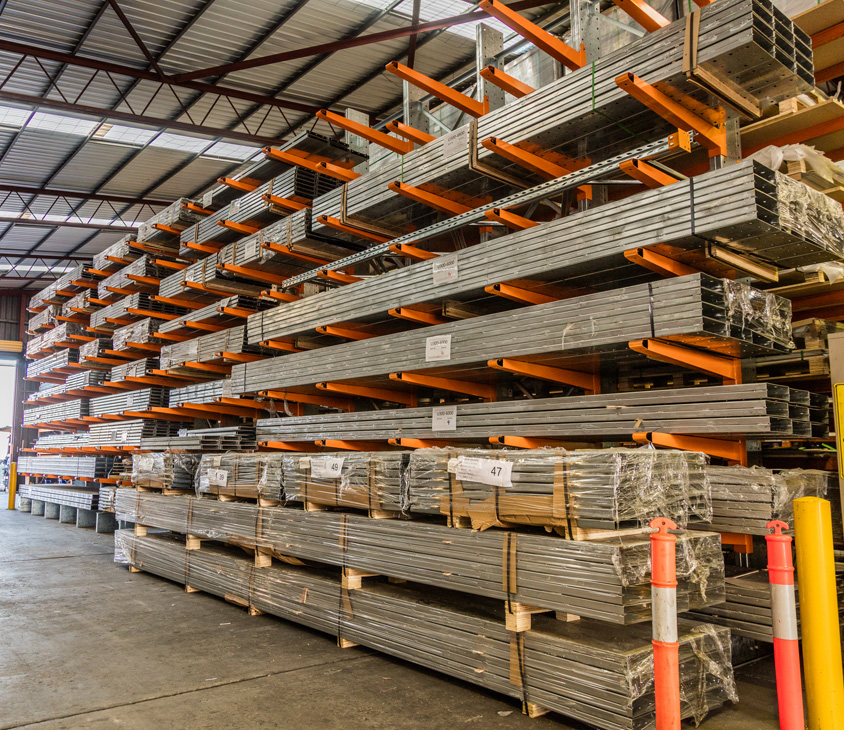

The LOGIX® Cantilever Racking System is: ideal for storing long, irregular or mixed loads, economical, flexible and uniquely designed
Cantilever Unique Design
- 3 interchangeable systems: light, medium and heavy duty
- Heavy structural steel components provide high resistance to impact damage
- High visibility safety orange arms, with galvanised also available

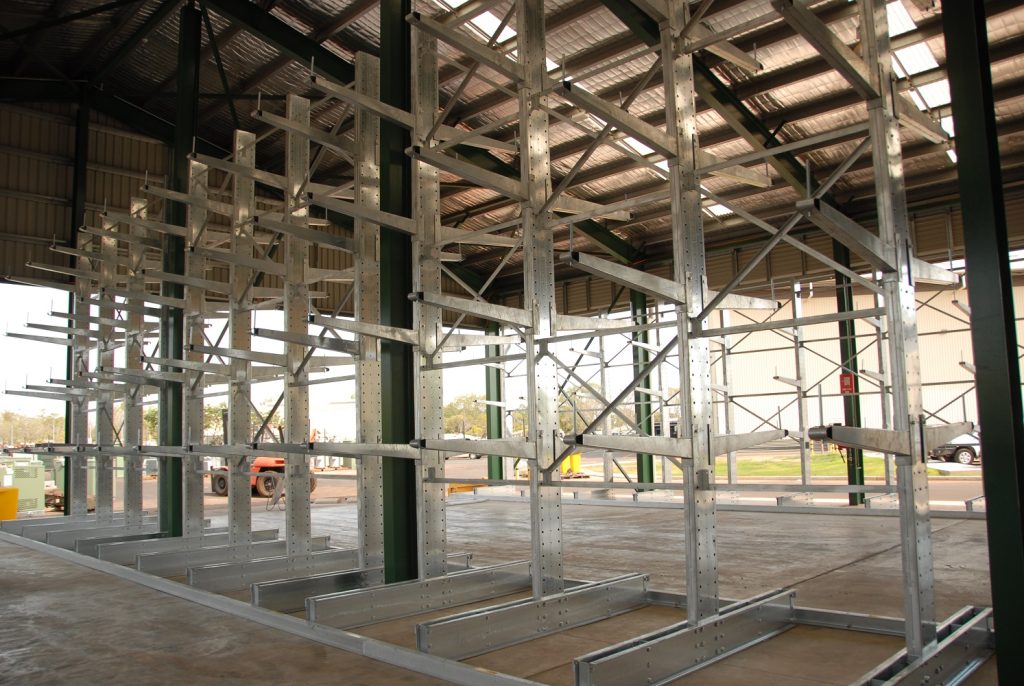

- Durable galvanised columns, bases and bracing
- LOGIX® Dual Hole Arm Bracket System
- Standard arm capacities up to 1000kg
- Standard arm lengths up to 1500mm
- Standard column heights up to 8000mm
- LOGIX® Pivot Arm Safety System
Engineered to Hold. Designed to Last.
No matter how large, small, long or short the storage problem, the LOGIX® Cantilever Racking System will provide you with an adaptable, strong and practical solution.
Standard Dimensions:
|
|
Light Duty:
| Column Heights (mm) | Bay Widths (mm) | Arm Lengths (mm) |
| 2415 | 900 | 600 |
| 3615 | 1200 | 900 |
| 4815 | 1500 | 1200 |
| 6015 | 1800 | 1500 |
Medium Duty:
| Column Heights (mm) | Bay Widths (mm) | Arm Lengths (mm) |
| 2400 | 900 | 600 |
| 3600 | 1200 | 900 |
| 4800 | 1500 | 1200 |
| 6000 | 1800 | 1500 |
| 7200 |
Heavy Duty:
| Column Heights (mm) | Bay Widths (mm) | Arm Lengths (mm) |
| Made to order | 900 | 600 |
| 1200 | 900 | |
| 1500 | 1200 | |
| 1800 | 1500 |
Built Strong for Big Storage
The GoShelving Logix Cantilever Racking System offers a strong, versatile, and efficient solution for storing long, bulky, or heavy items with easy access and maximum space utilisation.
